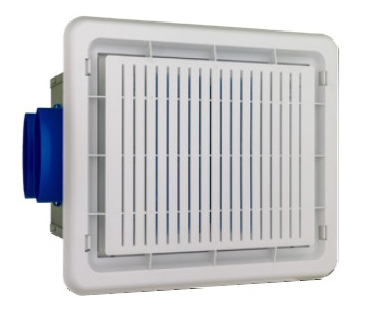

TRe-EG (EVERGREEN) ERV
Designed for residential spaces, Evergreen™ energy recovery ventilators (ERVs) feature eco-friendly ventilation with a 25–130 CFM range.
These low-profile ERVs fit inside most ceiling joist or ceiling cavity configurations. Instead of circular openings, the series utilizes 5-inch oval exhaust and supply connections to simplify installation. Maintenance is straightforward, requiring only periodic change of the easily accessible return air and outdoor air filters.
Engineered with high-efficiency EC motorized impellers and static plate core, Evergreen ERVs exchange heat and humidity to temper incoming air without cross-contamination. This series optimizes indoor air quality (IAQ) in single-point exhaust applications such as bathrooms, laundry rooms, apartments, and condominiums. Accessories include dampers, MERV 13 filter, and control timers to further enhance IAQ.
- Build America (BABA)
- cETLus
- HVI
Key Features
- Ventilation type: static plate, heat and humidity transfer
- Typical airflow range: 25-130 CFM
- Unit is HVI tested/certified per CSA C439 protocol: using one L-07-G5 core
- Motor: qty. 2, 120V EC motorized impellers
- Unpainted galvanized and ABS cabinet
- Hard wired to junction box
- Airflow set point: select minimum exhaust airflow (30, 40, or 50 CFM) or constant speed (25-130 CFM)
- Single speed operation
- Controls: Unit is on with power, control via any line-voltage power supply (no low-voltage controls)
- Filters: Total qty. 2, MERV 7, spun-polyester media: 7 3/8" x 10 1/8" x 3/8"
