TRLPe Total Recovery Low Profile with EC Motor

Energy Recovery Ventilators

TRe Model

Model Features

  • MERV 8 filters (MERV 13 option available)
  • Typical Airflow range 10 - 130 CFM
  • Capable of being installed in ceiling or wall mounting with a minimum height or depth of 9.5"
  • Onboard digital controller with independent variable speeds
  • Four 6" duct collars for easy duct connection
  • White painted cabinet with access door for easy access to blowers, core, and filters.
  • Line cord power supply (TRLPe110) or hard-wired to junction box (TRLPe110H)
  • Wall mount bracket & ceiling mount hanging systems
  • HVI Certified, cETLus listed, Ecowatt
  • No condensate pan or drain required
  • Fixed-plate cross-flow core, capable of transferring both sensible and latent energy between airstreams.
  • Dial-A-Flow - balance and airflow adjustment

HVI cETLus   Ecowatt

Model Overview

The Total Recovery series with Electronically Commutated (EC) Motor uses a multi-speed control with an air-to-air energy exchange core to create balanced energy ventilation for residential and light commercial applications. TRLPe’s compact design makes it an ideal solution for residential, mixed-use, and multi-family applications where space is a concern. With an included EC motor and HVI certification, these Total Recovery models meet all of the requirements for the Ecowatt® standard for energy-efficient products. The Ecowatt® standard is used to classify energy-efficient products that use Electronically Commutated (EC) or Direct Current (DC) motors that have certified performance from AMCA or HVI.

10-year core warranty, 2-year unit warranty

Core Performance for TRLPe110

Airflow (CFM) Sensible EFF% Total EFF%
Winter/Summer

Max. Speed

138 62 54/36
131 64 55/38
125 65 57/40
117 66 59/42
110 68 60/44
102 69 62/46
95 71 64/48
87 72 66/51
78 74 68/53
68 76 70/56
49 79 75/61
34 82 78/66

Min. Speed

26 84 80/68
11 87 83/72

Core Performance for TRLPe110H

Airflow (CFM) Sensible EFF% Total EFF%
Winter/Summer

Max. Speed

138 62 54/36
131 64 55/38
125 65 57/40
117 66 59/42
110 68 60/44
102 69 62/46
95 71 64/48
87 72 66/51
78 74 68/53
68 76 70/56
49 79 75/61
34 82 78/66

Min. Speed

26 84 80/68
11 87 83/72

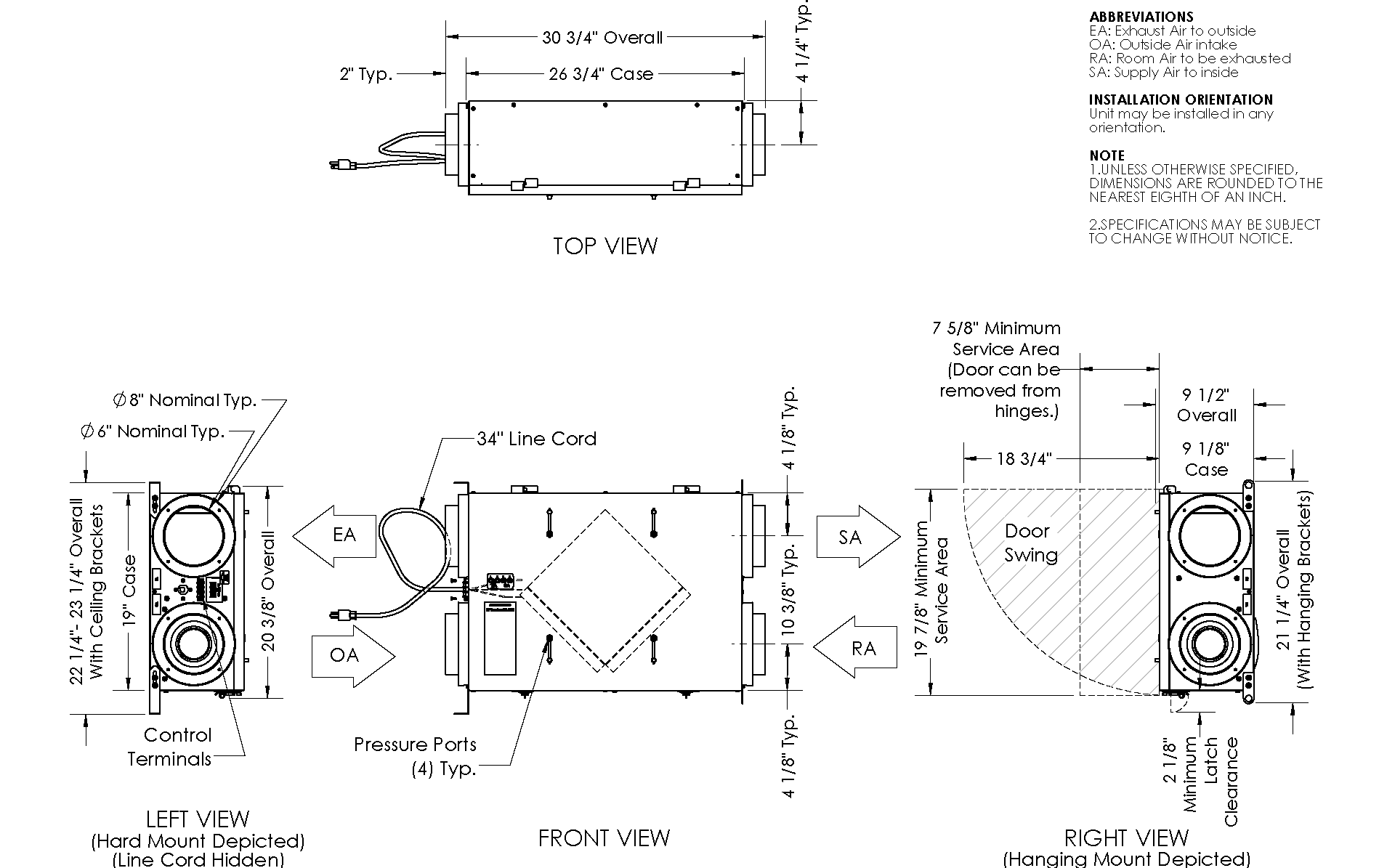

Dimensions for TRLPe110

Dimensional drawing for the TRLPe100 models.

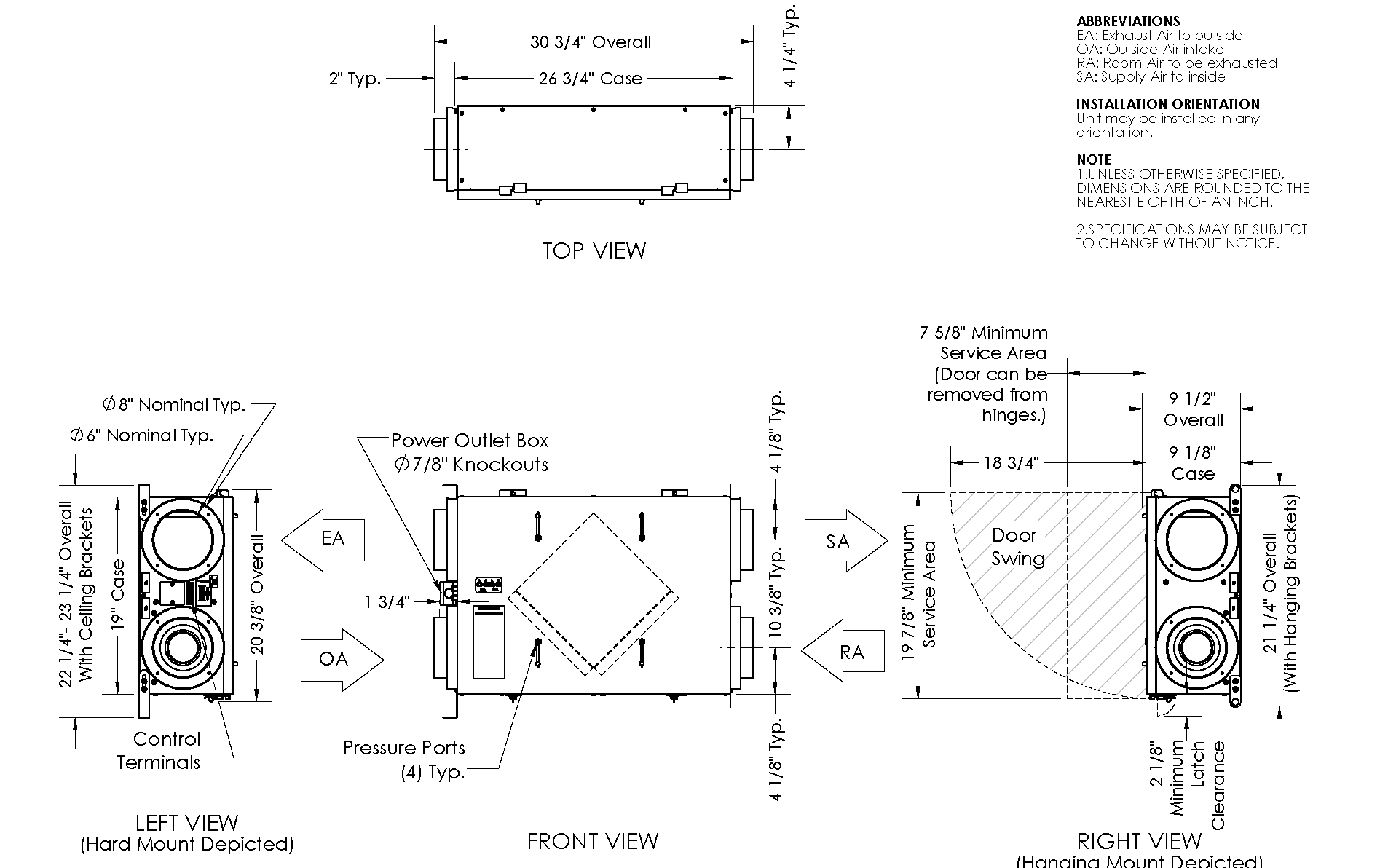

Dimensions for TRLPe110H

Dimensional drawing for the TRLPe100C models.

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

General Accessories

CAR150 6" Steel Backdraft Damper Submittal
CAR200 8" Steel Backdraft Damper Submittal

Electrical Accessories

FT247 Programmable Fan Timer Submittal
MD6 6" Motorized Damper 24V Submittal
ES24V Envirosense Ventilation Control 24V Submittal
SFM Percentage Timer Control with Furnace Interlock IOM
SHW-20 Wall Mounted Dehumidistat Submittal
SPBT Push Button Point of Use Boost Timer (TRe/TRLPe) NOT COMPATIBLE WITH SPTL IOM
SPBL Push Button Point-of-Use Control IOM
SPTL Percentage Timer Control IOM
STC7D-W Digital Time Clock - Wall Mount
SMC-C Motion (Occupancy) Control - Celing Mount
SMC-W Motion (Occupancy) Control - Wall Mount
DH6-120V 6" Duct Heater 120V Submittal
SC02-W Carbon Dioxide Control - Wall Mount

Standard Accessories

990076 Universal Filters (10 Packs of Filter Media) Submittal
990447 Universal Filters (3 Packs of Filter Media) Submittal
BD6 6" Gravity Backdraft Damper
BD8 8" Gravity Backdraft Damper
FA8-P 8" Paintable Metal Wall Cap
VB-106 6" Brown Vinyl Wall Cap
VT8 8" Taupe Vinyl Wall Cap
VW106 6" White Vinyl Wall Cap
VW12X8 12x8-inch Louver to 8" Round Galvanized Metal Wall Cap
