High Performance Fixed Louver 2in. Deep
Stationary louvers are commonly seen in applications that require intake and exhaust ventilation.

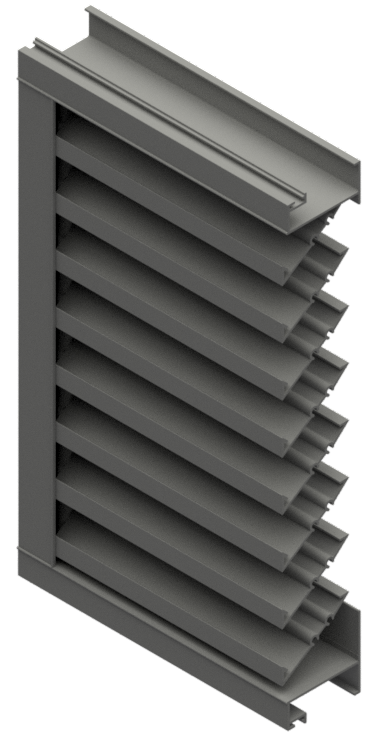

FL-D-2
Key Features
Model FL-D-2 is a 2" deep fixed drainable extruded aluminum louver. When the FL-D-2 was licensed by the AMCA laboratory it was shown to allow .01 oz/per SQ FT of water penetration at 805 FPM and have a free area over 53%.
- Design Wind Load: 30 PSF
- Free Area: 54%
- Point of Water Penetration: 805 FPM
- Pressure Drop @ Water Penetration: .09" w.g.
- Blade Angle: 37°
- Max Single Section: 120" x 84" or 84" x 120"
